SlideLine 18 Inset Sliding System
The SlideLine 18, also SL 18, sliding system embodies Hettich's commitment to superior quality and innovation. Designed with the user in mind, it offers a simple assembly process and features soft opening and closing mechanisms, ensuring a smooth and silent operation that is truly effortless. Its adaptability extends to various door configurations, from two-door setups to expansive three-door designs, offering flexibility without compromising on performance. This exceptional sliding system elevates the wardrobe experience to new heights.
SlideLine 18 Inset Sliding System: Setting a new benchmark in smoothness
Technical Details
- Sliding door system on Twin Track

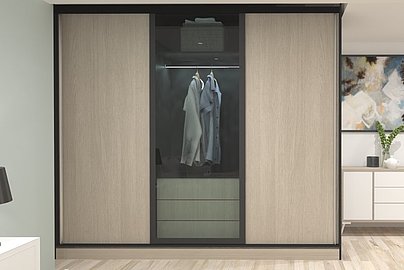

- 2 door and 3 door wardrobes with Inset door position
- Compatible with both wooden and Alu. Frame door
- Max. door height 2400 mm
- Door width 700-1200 mm

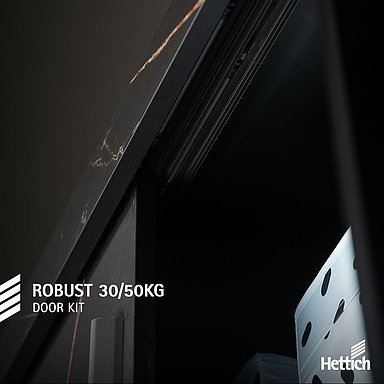

- Door weight 30/50 kg per door

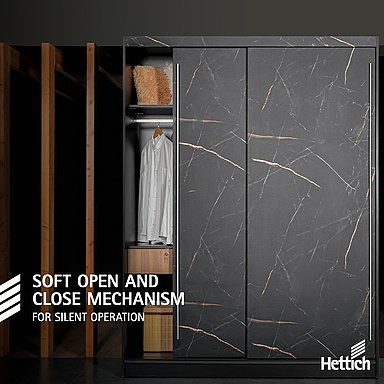

- Soft opening & soft closing

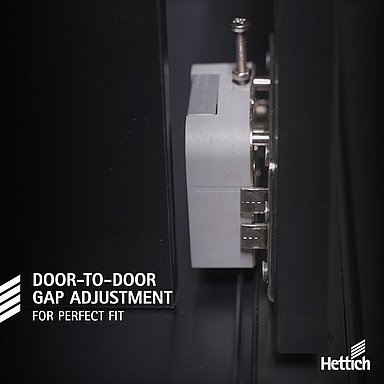

- Standard Door gap of 11.9 mm for all door thickness
- Compatible with 18-25 mm Wooden door thickness /55 mm Alu. Profile
Applications
- Storeroom solutions
- Wooden sliding doors in wardrobes
Quality Assurance
- Endurance test over 20,000 cycles (EN 15706 Level 2)
- Closing test with a pulling force of 3kg (EN 15706 Level 2)
- Lift out test at 200N (EN 15706 Level 2)
- Load test in Horizontal direction at 200N (EN 15706 Level 2)
- Corrosion Test: 48 hours Condensation test (DIN EN 9227)

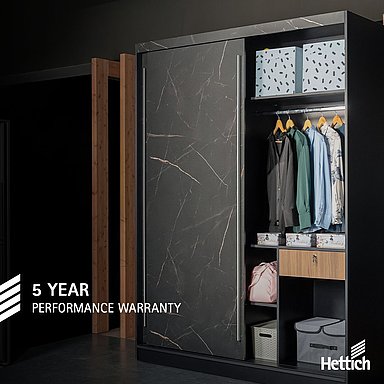

- 5 years performance warranty*
